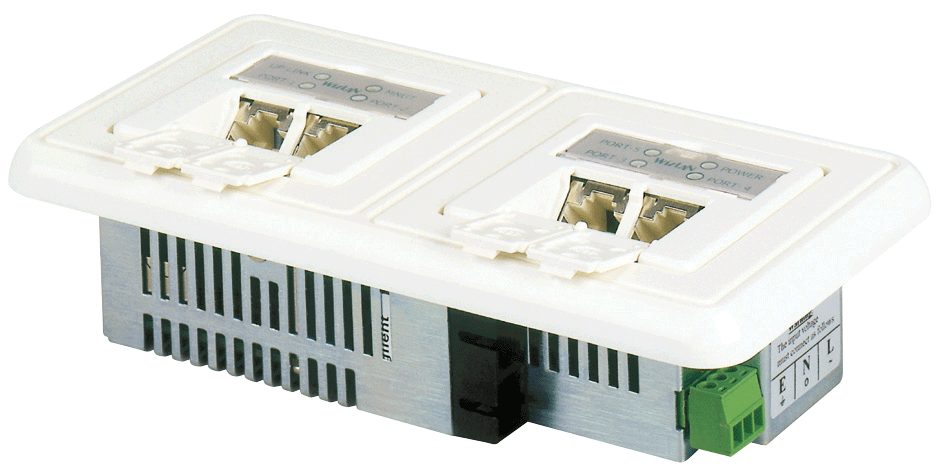

WP-680A

Fully Managed 6 Port Gigabit Managed Installation Switch 10/100/1000BaseTX and 1000BaseSX/LX (48VDC powered)



  • Gigabit, Fully managed high-end cable-duct installation switch
  • Four external triple speed (10/100/1000M) auto-negotiate, auto MDI/MDI-X User's ports
  • 1000BaseSX/LX F/O uplink port (SFP or SC)
  • Daisy chain port either RJ45 triple speed (10/100/1000M) or SFP 1000BaseSX/LX
  • Fixed or plug-in (field upgreadable) management agent and Web server (fixed IP or DHCP) with highly secured in-band access
  • User access security via MAC security and optional 802.1x authenticator.
  • Remote management via WizLAN’s enhanced Wiz- View/A application, Web (full Java applet) and Telnet
  • Fixed or plug-in (field upgreadable) PoE module, providing IEEE802.3af PSE on all four user's ports
  • Powerd by external 48VDC power supply
Related Documents Click to DownloadWP-680A Data Sheet (317Kb)
