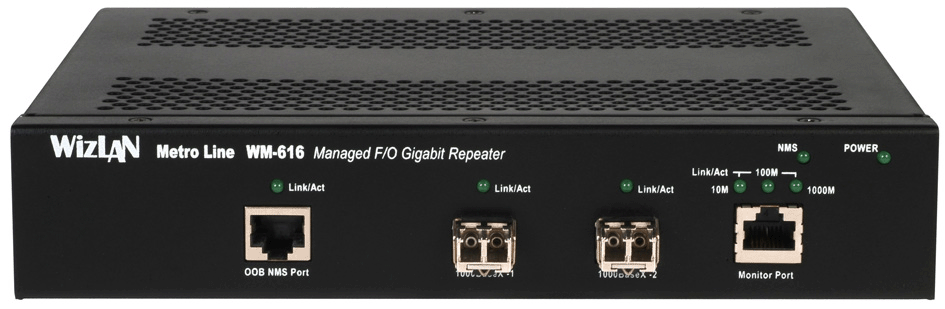

Fully Managed Fiber to Fiber Gigabit Converter / Repeater 1000BaseX and 1000BaseX


  • Fully managed telco-grade F/O Gigabit repeater and F/O mode converter, 1000Base-X to 1000Base-X
  • Highly reliable 3R technology (Retiming, Reshaping and Regeneration)
  • Unique isolation between customer’s data and provider’s management
  • Isolated out-of-band (OOB) management port and highly secured in/out of band management access from WizLAN’s Wiz-View/A EMS application, Telnet or Web browser
  • Traffic monitoring port for special applications (optional)
  • One isolated “dry contact” input for sensor/alarms, and one activation “dry” output (optional)
  • Enhanced port/converter setting including mode, flow control, rate limit, learning/aging, as well as MNGT access security, RMON counters etc.
  • Internal AC or DC power supply options
  • Desktop and rack mount installation (1U)

Fully Managed Fiber to Fiber Gigabit Repeater, with 1000BaseX and 1000BaseX converter ports, a 10/100BaseT out-of-band management port, and an optional 10/100/1000BaseT traffic monitoring port.

This product is used to extend the distance of Gigabit fiber optic links, using intermediate repeaters that re-shape, re-time and re-generate the signals. The product can also be used as a high end multimode to single mode converter.

Related Documents Click to DownloadWM-616 Data Sheet (426Kb)
