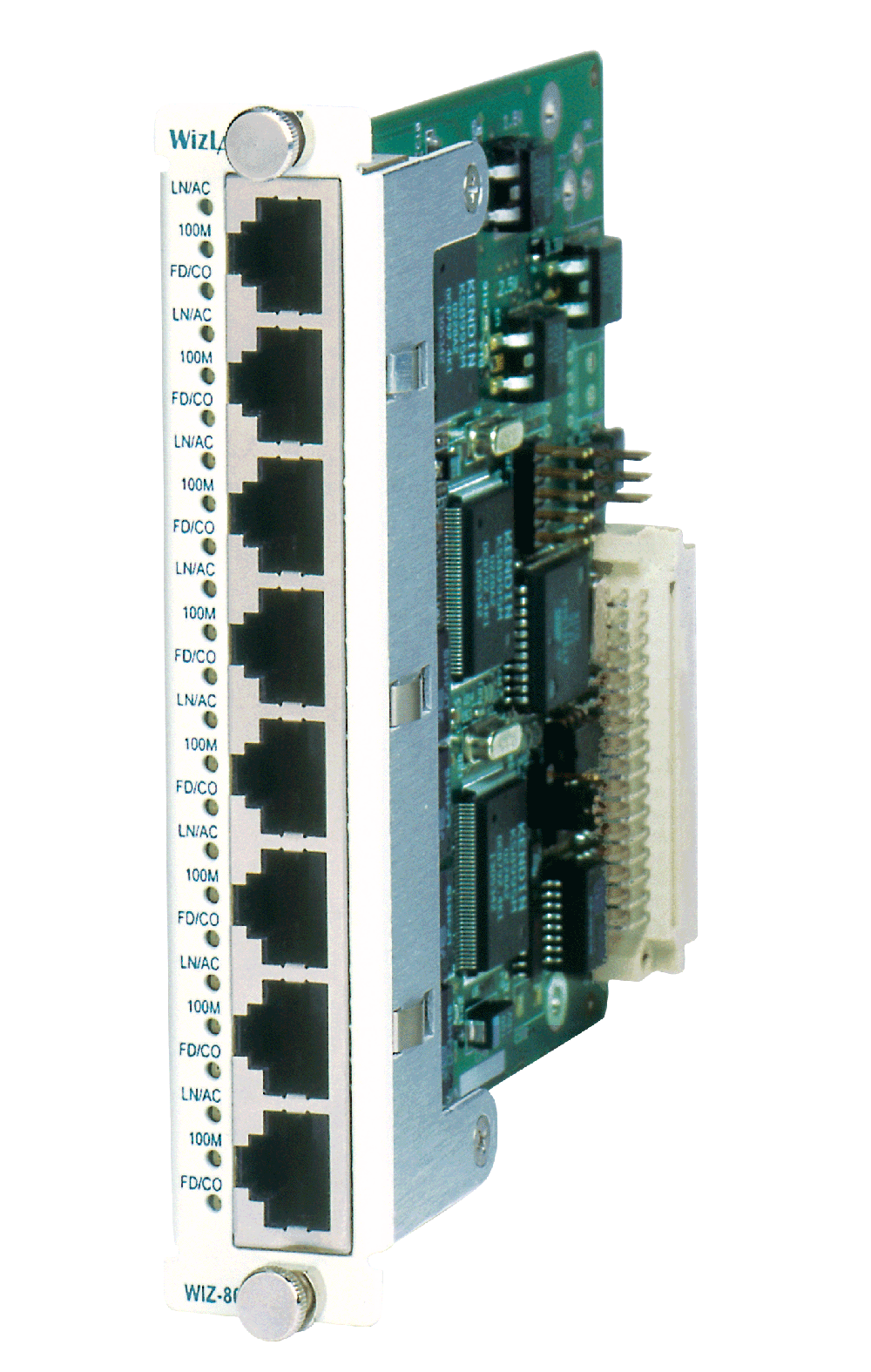

WIZ-800

8 port 10/100BaseT auto-negotiation, auto crossover switch module

  • Eight-port 10/100BaseT/TX Ethernet switch
  • Auto-negotiation
  • MDI-II/MDI-X auto crossover
  • Full wire speed and half/full duplex support on all ports
  • Flow control and broadcast storm control protection
  • VLAN and QOS support (optional)
  • Enhanced, per port LED indicators
  • Manageable

The WIZ-800 module is an eight-port Ethernet switch module designed for the Media Wizard modular chassis. It provides the Media-Wizard with dual speed switching capabilities usually required for small workgroups and LPP (LAN-Per-Port) distribution.

The WIZ-800 module includes eight 10/100Mbps auto-negotiation RJ-45 ports supporting UTP/STP cabling. The module supports MDI-II/MDI-X auto crossover on all ports, providing plug and play operation and eliminating common cable problems.

Related Documents Click to DownloadWIZ-800 Data Sheet (159Kb)
